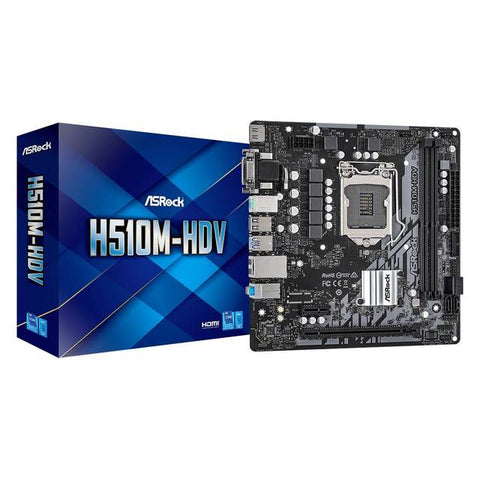

ASROCK H510M-HDV LGA1200/ Intel H510/ DDR4/ SATA3&USB3.2/ Micro ATX Motherboard

ASROCK H510M-HDV LGA1200/ Intel H510/ DDR4/ SATA3&USB3.2/ Micro ATX Motherboard

Asrock

CPU:

  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
  • 5 Power Phase design
  • Supports IntelTurbo Boost Max 3.0 Technology

Chipset:Intel H510

Memory:

  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 64GB
  • Supports Intel Extreme Memory Profile (XMP) 2.0

BIOS:

  • 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  • ACPI 6.0 Compliant wake up events
  • SMBIOS 2.7 Support
  • CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, CPU Standby, VCCIN AUX Voltage Multi-adjustment

Graphics:

  • 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
  • Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  • Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
  • Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
  • Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports

Audio:

  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Supports Surge Protection

LAN:

  • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  • 1 x Realtek RTL8111H
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE

Slots:

11th Gen Intel Core Processors

- 1 x PCI Express 4.0 x16 Slot

10th Gen Intel Core Processors

- 1 x PCI Express 3.0 x16 Slot

- 1 x PCI Express 3.0 x1 Slot

Storage:4 x SATA3 6.0 Gb/s Connectors, support IntelRapid Storage Technology 18, NCQ, AHCI and Hot Plug

Connector:

  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Rear Panel I/O:

  • 1 x PS/2 Keyboard Port
  • 1 x PS/2 Mouse Port
  • 1 x D-Sub Port
  • 1 x DVI-D Port
  • 1 x HDMI Port
  • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  • 4 x USB 2.0 Ports (Supports ESD Protection)
  • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI:

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock XFast LAN

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Instant Flash

- ASRock Internet Flash

Support CD:Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories:

  • Quick Installation Guide, Support CD, I/O Shield
  • 2 x SATA Data Cables

Hardware Monitor:

  • Fan Tachometer: CPU, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  • CASE OPEN detection
  • Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V

Form Factor:

  • Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
  • Solid Capacitor design

OS:MicrosoftWindows10 64-bit

Certifications:

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)
