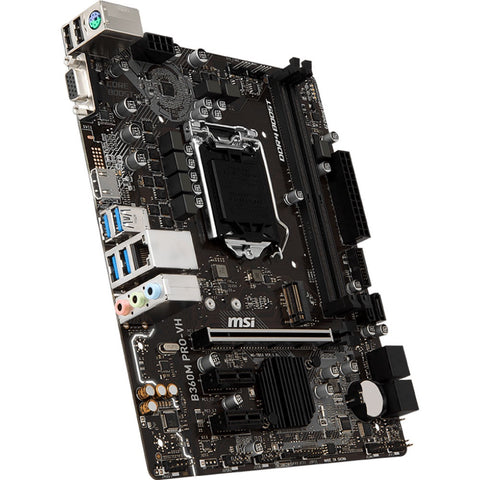

MSI B360M PRO-VH LGA1151/ Intel B360/ DDR4/ SATA3/ USB3.1/M.2/ A&GbE/ MicroATX Motherboard

Processor:  Supports 9th / 8th Gen Intel® Core / Pentium Gold / Celeron processors for LGA 1151 socket

Memory:  2 x DDR4 memory slots, support up to 32GB, Supports DDR4 2666/ 2400/ 2133 MHz

Onboard Graphics:  1 x VGA port, 1 x HDMI *No Display support when using the Processor model with suffix “F”

Slots:  1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1

Storage:  6 x SATA 6Gb/s ports, 1 x M.2 slot (Key M) Supports 2242/ 2260/ 2280 storage devices; Intel Optane Memory Ready

Ports:  6x USB 3.1 Gen1, 6x USB 2.0, 7.1 HD Audio, 1 x Gigabit LAN

Power:  1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Form Factor:  m-ATX

OS:  Support for Windows 10 64-bit

Notes

Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

The SATA2 port will be unavailable when an M.2 SATA SSD module has been installed in the M.2 slot.
